Heidolph Hei-Vap Expert Rotary Evaporators


Heidolph Rotary Evaporators, Hei-VAP Expert Series.
• Automatically evaporation with Dynamic AUTOaccurate.
• Display-pictogram symbolizes active functions.

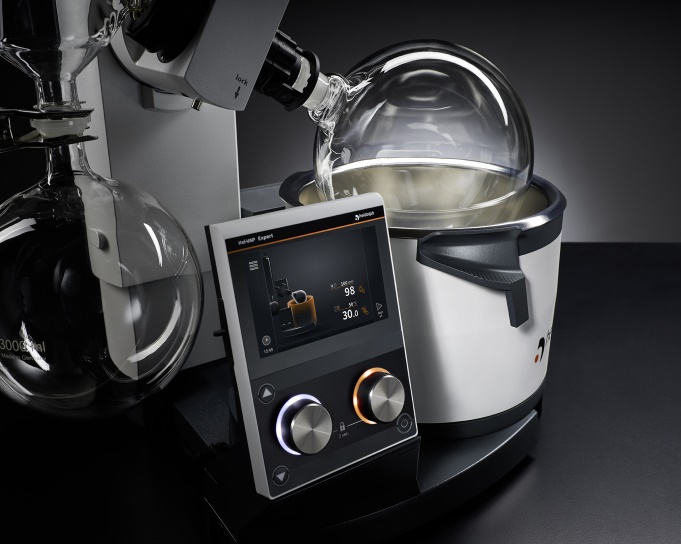

• 5″ touch display control, including vacuum and cooling temperature (in “CONTROL” model).
• Two separate operating knobs for adjusting rotation speed, and vacuum/bath temperature with LED ring light.
• Knob-lock feature prevents inadvertent adjustments.
• USB and Micro SD interface.
• Rotation speed: 10-280 rpm.
• Max. Evaporation flask: 5 Liter.
• Bath Temp. range : 20-210°C electronically controlled.
• New ventilation cap with PTFE inlet, free of ground joints for grease free operation. Optionally available with replenishment valve.
• FDA compliant materials.
• Non slip bath-handles with safety grip.
• Bath separate on/off switch.
• Bath over heat protection.
• Control is frontally located for users safety (optional: 1.2 meters extention to locate outside a fume hood).
• Splash-proof operating panel, IP 42.
• 36 Months Warranty!
• For 230V / 50Hz.
