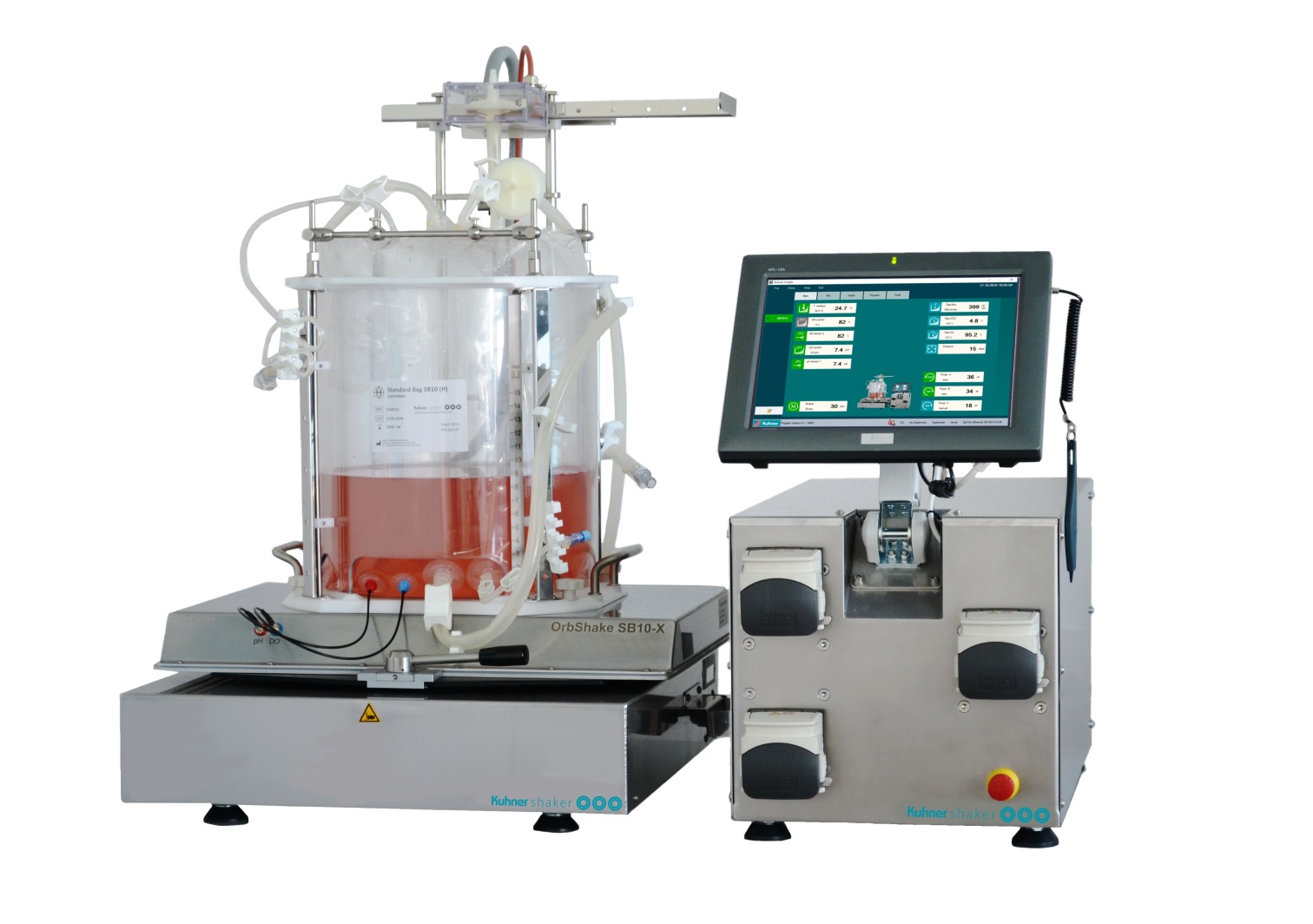

Orbital Shaker Benchtop Bioreactor for Single-Use Bags, SB10-X, Made in Switzerlan

Orbital Shaker Benchtop Bioreactor for Single-Use Bags, SB10-X, Made in Switzerlan
• Very similar hydrodynamics to flasks, enables fast and easy scale-up.
• Low shear stress. Ideal for human, mammalian and plant cells cultivation.
• Very few bubbles and foam (means less, or no Pluronic and antifoam).
• Simple-design, 3D single-use bags – saves cleaning and sterilization time
• Bags equipped with optical pH and DO sensors for online measurement and control
• Orbital shaking motion with adjustable diameters: 12.5/25/50 mm
• Direct drive mechanism for quiet, precise operation with no maintenance required
• Efficient oxygenation with no foaming – ideal for growing sensitive cells and microcarriers
• Temperature control range up to 40°C, with an accuracy of ±0.25°C
• Control unit with a 12.1” touch screen and Kuhner Insight software (GMP and 21 CFR Part 11 compliant)
• Three peristaltic pumps for aseptic fluid management and feeding
• Advanced gas mixing system (FlowCon) with 4 flow controllers (N₂, O₂, CO₂, and air or gas mixture)
• Working volume of 4–12 liters (option for a 3-liter module for minimal working volume of 1.5 L)
• Compact, modular design – ideal for space-constrained lab environments:
– Shaken Bioreactor footprint: 669×646 mm
– Control unit footprint: 698×328 mm
Accessories: MagFix tube management holder, Light protection cover, Variety of single-use bags available: Standard, Basic, and Perfusion (ATF/TFF).
All details as per Kuhner’s website
