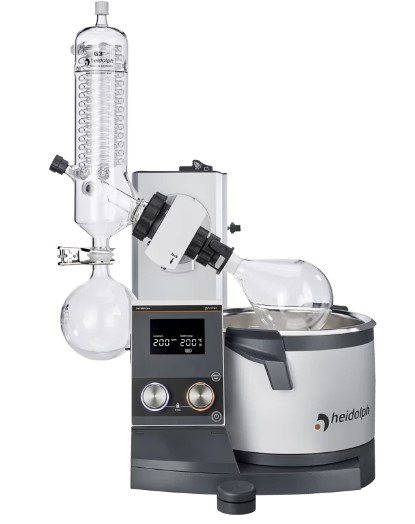

HEIDOLPH Hei-VAP CORE Rotary Evaporators

Features & Specifications

Heidolph Rotary Evaporators Hei-VAP CORE Series.

• Affordable model for all standard applications.
• Two operating knobs for adjusting speed and temperature with LED ring light for activity indication and safety warning.
• Clear display of current bath temperature and speed.
• Separate button to display the set values.
• Activated lock feature prevents inadvertent adjustments.
• Splash water protected operating panel in accordance with IP 42
• Control is located near the base to keep users safety
(optional: can be remoted up to 1.2 meters).
• Rotation speed: 10-280 rpm.
• Max. Evaporation flask: 5 Liter.
• Bath Temp. up to 210°C. electronically controlled.
• Grease free operation due to Ventilation cap with PTFE inlet. (Optionally available with replenishment valve).
• FDA compliant materials.
• Non slip bath-handles with safety grip.
• Bath over heat protection.
• 36 Months Warranty!
• For 230V/50Hz.

Downloads

Hei-VAP-Core-at-a-glance.pdf
